ROHM has developed an ultra-low resistance jumper resistor with an on-resistance value of Max0.5mΩ!

AVX tantalum capacitor low resistance TPSD107K016R0100 original 2011+

Japan's leading semiconductor manufacturer ROHM Co., Ltd. (Headquarters: Kyoto, Japan) to develop on-resistance values down to Max0.5mΩ, while making a substantial increase in the rated current of ultra-low resistance jumper resistor "PMR Jumper Series."

This product has already started to provide samples (sample price: 20 yen / piece), and started mass production in September with a monthly production capacity of 10 million. The production base is at ROHM Electronics Philippines Inc. (Philippines).

In general household appliances such as notebook computers, jumper resistance (zero-ohm resistance) has been used for switching circuits and functions on the same package substrate, but the conventional jumper resistance is low resistance. The product also has a resistance value of several tens of mΩ. In recent years, with the versatility of electronic devices, the current value in the circuit is also increasing. The power loss and voltage leakage in the jumper resistance have become more important, so that the resistance value is closer to zero. The demand for jumper resistors continues to rise.

The PMR jumper series developed by ROHM uses a special alloy with excellent electrical conductivity in the resistor body, which greatly reduces the resistance value (1/100 of the conventional product). In addition, the rated current is achieved through the original chip structure. Significantly improved, power loss and power drop can be minimized when a large current is applied. Not only that, but also the wide range of requirements from portable devices to in-vehicle devices, the product line has reached five products, ranging in size from 1608 (22.4A) to 6432 (63.2A). This will make a significant contribution to reducing the power consumption of various electronic devices.

ROHM has been at the forefront of the world in the broad technical fields of miniaturization, diversification, ultra-high precision, ultra-low resistance and other resistors. In the future, we will continue to expand our high-quality resistor product line for various needs.

<Super Low Resistance Jumper Resistors> Main Features of PMR Jumper Series>
1) On-resistance value up to Max0.5mΩ (1/100 of conventional thick film type)
2) High current application (22.4A to 63.2A)
3) Excellent resistance to over-current load and pulse load 4) Full lead-free 5) Easy package, can be replaced by jumper lead, surface mountable

<rated current>
Compared with traditional products, the rated current is more than 20 times (example: 1608 size products)

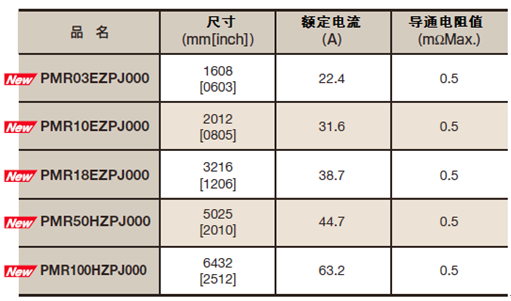

<Specification>
