[PConline evaluation] In the recent non-public version of the GTX1080Ti graphics card, the current evaluation of the protagonist Sotec GTX1080Ti-11GD5X PGF OC can be regarded as late, but there must be a reason to be late; in this regard, Sotec to The answer is that they have redesigned the radiator and the product. Let's take a look at the changes that Sotec GTX1080Ti-11GD5X PGF OC has brought.
Sotec GTX1080Ti-11GD5X Player Power Extreme OC Reference Price: Read... Photos Reviews Quote Parameter Overview
Inheritance of PGF style and shape, redesign of the shroud is more atmospheric
As soon as I saw this card, I felt that it was similar to Sotec's GTX1080 PGF OC. Later, after careful comparison, I found that the Sotec GTX1080Ti-11GD5X PGF OC's shroud was indeed redesigned, but it was retained. In terms of style and elements, the redesigned style is more atmospheric than before, and it is quite capable of embodying the status of the Card Emperor.
The backplane aspect is a continuation of the style of the GTX1080 PGF before, large area hollow + transparent board design, comes with RGB lighting effect is very cool.

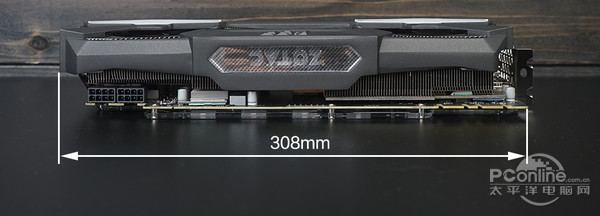

The whole card size is 308 × 135 × 65mm, the length of the conventional three-fan graphics card, the side is actually almost the same as before the GTX1080 PGF, there is a ZOTAC RGB Logo light on the top. Another point is that this card is very heavy, but Sotec has provided matching solutions. In the end, what we said below.
External power supply is 8+8Pin, 2Pin more than the public version, power high frequency!
I/O this public AIC all take the initiative to add the DVI interface (public version is not), Sotec is no exception, in addition to three DP interfaces and an HDMI interface.
Through Sotec's FireStorm 2.0 software, users can customize the switching lighting mode and match hundreds of lighting effects to meet their individual needs. Place a wave of light effect GIF eyes underneath.
Feel this positive RGB lighting effect is cooler than before!
The top LOGO light also supports RGB sync.

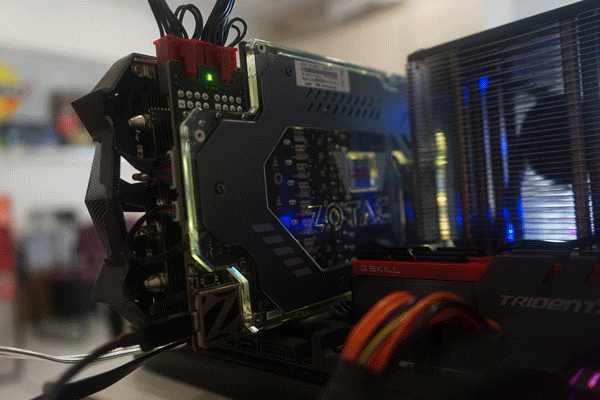

The whole backplane is full of light, and it's just like a titanium alloy dog ​​eye. This set of things to look down and feel the name of the lamp factory should be easy to change! Laugh~
Closer to home, let's take a look at the specifications.
Sotec GTX1080Ti-11GD5X PGF OC Specifications Comparison
Specifications: Sotec GTX1080Ti-11GD5X PGF OC's biggest highlight is the core frequency, the machine core frequency is 1620-7734MHz; already the highest non-public GTX1080Ti on the market the highest frequency, the same with the mainstream high-end GTX1080Ti must 8 + 8Pin External power supply, electricity supplier quoted at 6,399 yuan, is one of the most expensive non-public GTX1080Ti, of course, you look at the specifications of this lighting effect, apparently Sotec is its main model as a tripod, so the high price is also expected It!

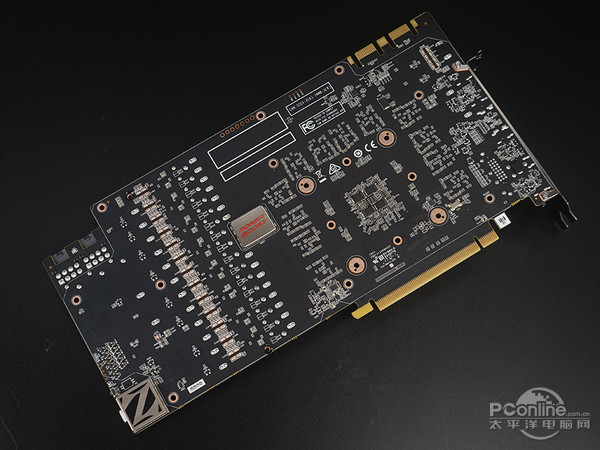

5 heat pipe three fans, strong cooling; 16 + 2 phase power supply, luxury materials!Don't look at this card's appearance so it's blown, but in fact it's not too hard to remove, just remove the 4 spring screws around the GPU base to easily separate the heat sink from the PCB!
Radiator is mainly composed of five pure copper sintered heat pipes and a large number of precision welded fins. The high-purity copper cooling base and the powerful three-fan silent fan can quickly dissipate heat from the GPU core.
In addition to the Aurora composite RGB lamp backplane, the Sotec GTX1080Ti-11GD5X PGF OC also comes with an all-metal backplane, which is light and efficient. It is also considerate to users who do not like light pollution!
The power supply scheme adopts a 16+2 phase quantum power supply system; it improves power conversion rate, reduces energy consumption, stabilizes current input, reduces inductive noise, and at the same time effectively extends the life of the parts! Seeing this dense power supply is simply mad cow!
The core code is GP102-350-K1 A1, GDDR5X memory chips, single capacity 1GB, a total of 11, 11G memory capacity, memory bandwidth 352Bit, bandwidth 502GB/s!
Share a Z-ELVES Smart Module, located on the edge of the PCB, with a Z logo on the outside. It is the core intelligent steward of the Sotec GTX1080Ti-11GD5X PGF OC. This module is an upgraded version of the previous Extreme OC+ overclocking module. The OC+ module is more intelligent and has a powerful memory function. It can realize centralized control of the core hardware of the graphics card, integrating fan speed control, LED light management, and GPU voltage monitoring.
PowerBoost speed engine is also one of Sotec's high-end graphics cards. It not only looks domineering, but also can play the role of filtering, voltage stabilization and steady flow. It provides a more secure and stable power supply for GPU core and memory, and also allows the graphics card to Overclocking is secured and helps the video card to challenge higher frequency limits.
In addition, we mentioned earlier this product is very heavy, so Sotec GTX1080Ti-11GD5X PGF OC is also presented with a graphics card support bar, to ensure that the weight can be installed on the motherboard, reduce the pressure on the motherboard slot!
3DMark Theory Test and Game Performance TestNVIDIA GTX 1080Ti
NVIDIA GTX TITAN X
NVIDIA GTX 1080
NVIDIA GTX 980Ti
AMD R9 Fury X
AMD Crimson Edition 17.3.3
Test Platform Description: The test platform is a mainstream consumer platform Z270+i7 7700K. A total of six graphics cards were selected for comparison testing. The driver is the latest A/N graphics driver. (In order to optimize the form, in the following table, Sotec GTX1080Ti-11GD5X PGF OC is referred to as Sotec GTX1080Ti.)
3DMark theory testIn addition to the two FireStrike Ultra & Extreme tests that we commonly use, 3DMark Theory Test adds 3DMark's latest DirectX 12 benchmark for game PCs, Time Spy, to provide a more comprehensive reference for everyone.
Theoretical test summary: Comprehensive 3DMark theoretical performance point of view, Sotec GTX1080Ti-11GD5X PGF OC compared to the public version of the promotion of about 6 to 9 points or so; than the author measured non-public GTX1080Ti products are high, we still look at See how its game performance.
Game performance testThe future is undoubtedly the world of DX12. In this test, we selected 6 representative DX12 game masterpieces. Among them, there are many native killer 6s, Tomb Raider 10, and Warhammer: Total War support DX12. "Outbreak: Human Breaking" and the latest "Phantom Operation: Wilderness" and later "Blockade" for DX12.
Test summary: The actual game experience, the average number of frames exceeds the public version of the range of 3-7 frames (depending on the game may be), the promotion is more obvious, basically can bring the game experience up a grade, it is indeed the highest current Frequency GTX1080Ti, extraordinary strength! Judging from the performance of a variety of 3A titles, this card is basically fully capable of playing all games with the highest resolution of 4K and below!

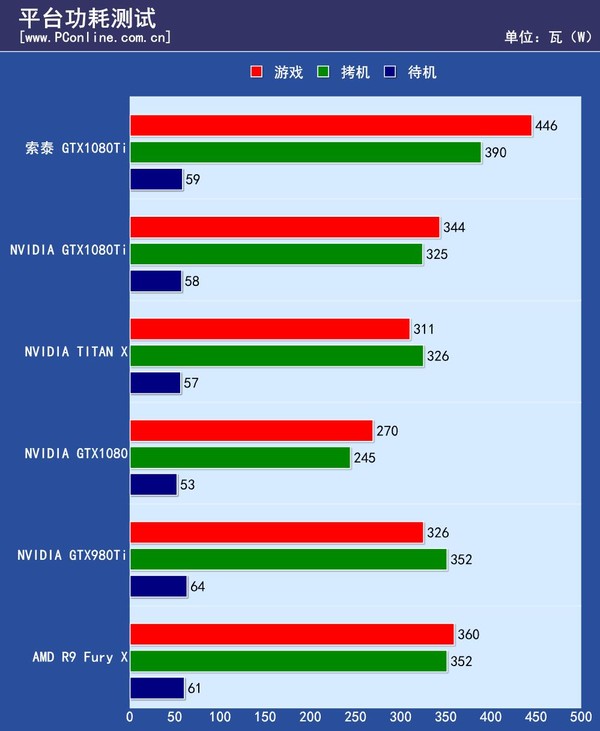

Platform power testIn order to get closer to the real scenes of the player's daily applications, and to more fully understand the power consumption of the Sotec GTX1080Ti-11GD5X PGF OC, we will use three scenarios to measure the power consumption of the platform, namely the 3DMark stress tester, Game player and standby mode.
Power consumption test summary: high-frequency high power consumption seems to be understandable, Sotay GTX1080Ti-11GD5X PGF OC's overall power consumption is much higher than the public version (except for standby power consumption), about 65-100W high; Rao is so , A 600W power supply with this card is certainly no problem, or thanks to the excellent energy efficiency ratio of Pascal architecture!
Video card temperature testTo test the temperature limit under the radiator, we used the 3DMark stress test to test.
Test summary: Under the condition of room temperature 26°C, the maximum temperature of the Sotec GTX1080Ti-11GD5X PGF OC pager is 76°C, which is 8°C lower than that of the public version of the heat sink. In such high frequency conditions, the temperature can also be controlled at about 75°C. It's enough to see Sauter's effort on the radiator!
Card noise testHere we measure the fan noise when the noise test card runs 3DMark stress test at full load.
Test summary: The fan noise during the pager was 57.5 dB, which was close to the normal conversation volume in a normal room. It was fairly quiet and it would be better to put it into the chassis.
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.
Followed by the attention of overclocking. First, we adjusted the core frequency of the Sotec GTX1080Ti-11GD5X PGF OC through the FireStorm 2.0, pulled it up to 1640MHz, increased the memory frequency to 12208MHz, and then performed the 3DMark rundown as follows:
It can be seen that the 3DMark FireStrike Ultra/Extreme/Time Spy running scores of Sotec GTX1080Ti-11GD5X PGF OC are respectively: 7679/15380/10853; how much is it improved? Take a look at the percentage chart below for everyone to see at a glance.
It can be seen that after the overclocking, Sotec GTX1080Ti-11GD5X PGF OC has increased 6 points on the basis of the original 8% of the public version. It can be said that the improvement of the frequency is significant for it. And this is only the result of the author's ease of adjustment. If you have conditions for players, careful training will believe that there will be more room for growth!
PConline graphics ladder diagram
Ladder Diagram Description: Needless to say, Sotec GTX1080Ti-11GD5X PGF OC is listed on the public version of GTX1080Ti and TITAN X.
PConline evaluation room summary
Sotec GTX1080Ti-11GD5X Player Power Extreme OC Reference Price: Read... Photos Reviews Quote Parameter Overview
As Sotec's non-public GTX1080Ti products, Sotec GTX1080Ti-11GD5X PGF OC is absolutely a first-class product in terms of performance and workmanship! First of all, it didn’t follow the rules and then used the GTX1080 PGF radiator instead, but redesigned and optimized the radiator. Although this would cause the shipment to slow down, it also made consumers see that Sotec wanted to make a top flagship. Product determination.
In fact, Sotec GTX1080Ti-11GD5X PGF OC also did this, on the machine ultra-high frequency 1620MHz, the entire card cool RGB lighting effect, 16+2 phase quantum power supply system, Z-ELVES intelligence module, PowerBoost The speed energy engine and the abundant bonus accessories (no-light backplane, support frame) all show that this is a top non-public GTX1080Ti. I believe that even if the price is as high as 6,399 yuan, it is worth a lot of Geek enthusiasts to pay for it!
1, on the machine 1620MHz, performance rolling public version and TITAN X
2, the appearance of cool, the entire card is RGB lighting effect, to meet the user's personalized needs
3, 16+2 phase quantum power supply system, luxury materials, power overclocking
4, Z-ELVES intelligence module, PowerBoost speed engine blessing
5, 11G large memory, Fun 4K, VR no pressure
6, 5 heat pipe 3 fan, further improved cooling system
7. Extensive accessories (with no luminaire back plate and support frame)
